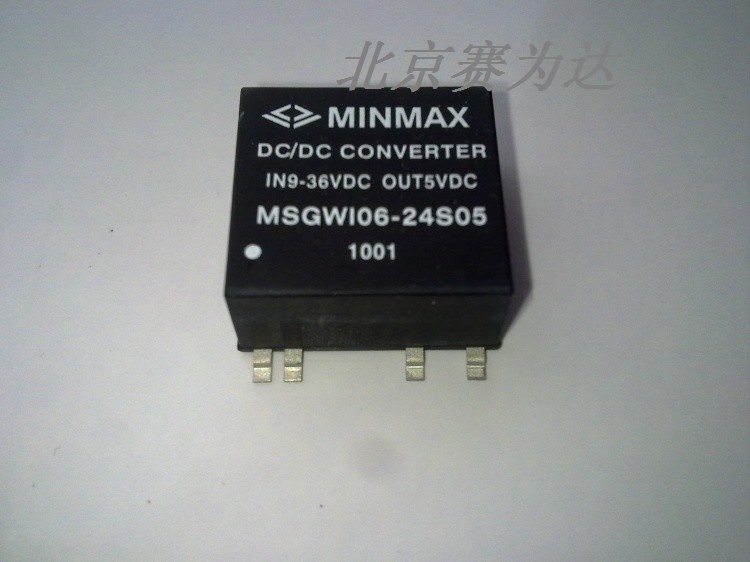

MSGWI06系列MINMAX電源模塊
地區城市：北京市－北京賽為達代理 更新時間：2011-8-11 17:04:53
聯 系 人：鄭 有效期限：2012-8-9 17:22:56
公司名稱：北京賽為達科技有限公司
電子信箱：mzsd007@hotmail.com 聯系電話：010-51735585，51735589，13811240319
產品特性：
|
Voltage Accuracy |
±1% typ |
|
Line Regulation |
±0.5% typ |
|
Load Regulation |
±0.5% typ |
|
Ripple & Noise (20MHz) |
60mVP-P typ |
|
Switching Frequency |
330kHz typ |
|
Efficiency |
Up to 83% |
|
Short Circuit |
Continuous |
|
Isolation Voltage |
1500VDC |
|
Isolation Resistance |
1000M? min |
|
Isolation Capacitance |
500pF typ |
|
Operating Temperature |
-40°C to +60°C |
|
Remote On/Off |
Enable High |
|
MTBF |
1,000,000 hours min |
|
Case Material |
Plastic, 94V-0 |
Model Selection Guide | |||
|
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
|
MSGWI06-24S033 |
|
3.3 |
1450 |
|
MSGWI06-24S05 |
|
5 |
1200 |
|
MSGWI06-24S12 |
|
12 |
500 |
|
MSGWI06-24S15 |
24 |
15 |
400 |
|
MSGWI06-24S24 |
( 9 – 36 ) |
24 |
250 |
|
MSGWI06-24D05 |
|
±5 |
±600 |
|
MSGWI06-24D12 |
|
±12 |
±250 |
|
MSGWI06-24D15 |
|
±15 |
±200 |
|
MSGWI06-48S033 |
|
3.3 |
1450 |
|
MSGWI06-48S05 |
|
5 |
1200 |
|
MSGWI06-48S12 |
|
12 |
500 |
|
MSGWI06-48S15 |
48 |
15 |
400 |
|
MSGWI06-48S24 |
( 18 – 75 ) |
24 |
250 |
|
MSGWI06-48D05 |
|
±5 |
±600 |
|
MSGWI06-48D12 |
|
±12 |
±250 |
|
MSGWI06-48D15 |
|
±15 |
±200 |
